Example of a trial product with 6 mm across-flats  hex socket punching

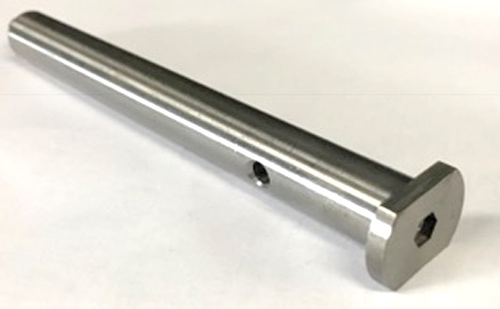

Entire product
Entire product

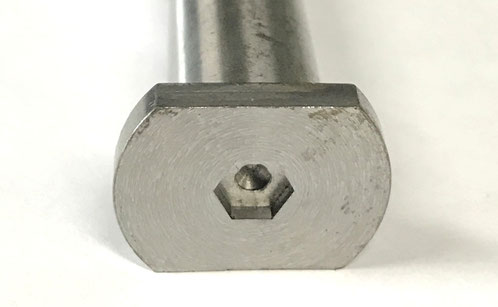

Enlarged view of the hex socket
Enlarged view of the hex socket



We introduce a trial product with 6 mm across-flats  hex socket punching this time.


[Overview]
6 mm across-flats  hex socket punching
Trial production of headed product: 15 pcs/lot
Material:  SUS304


We used a large press because the total length of the product was 175 mm long.
Because we were punching the hex socket into the final machined form, we were worried

about overwidening the section under the head after pressing.
Furthermore, the depth of the prepared hole was deeper than the designated effective depth

of the hex socket by only 0.5 mm. Clearance of the swarf was taken care of by changing the shape of the punch tip.
We ended up with a fine finish without widening the section under the head.
